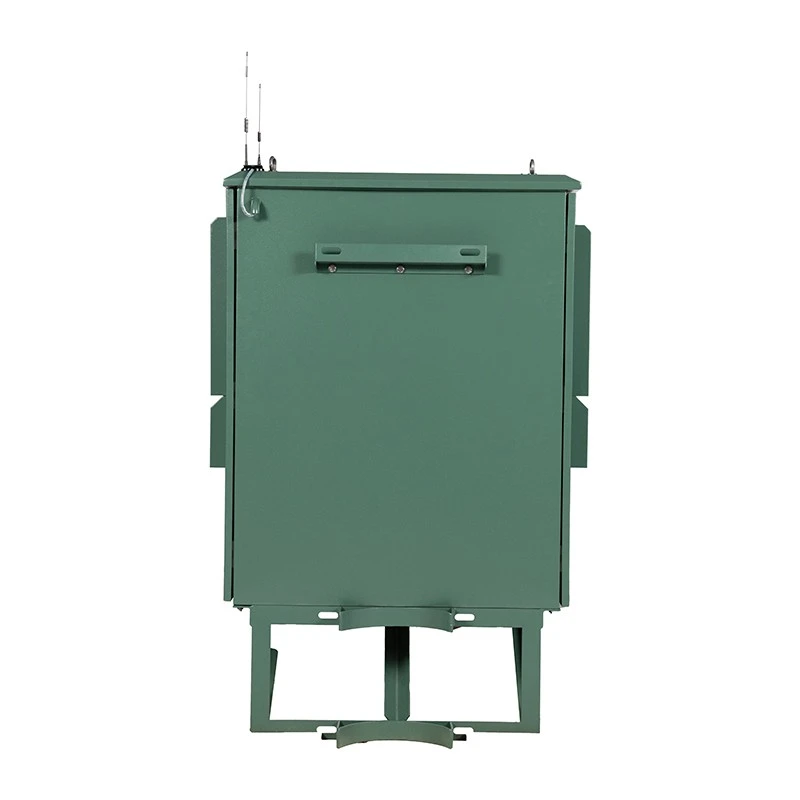

Dynamic Voltage Scaling UPQC
Solving high and low voltage issues
The UPQC device can effectively deal with high and low voltage problems in Taiwan. It can play an important role in the common line voltage fluctuation scenarios in rural power grids to avoid damage to electrical equipment caused by excessively high or low voltages.
Automatically stabilize output voltage
The device has a fully automated control function that detects grid voltage data in real time. After comparing it with the set output voltage, it flexibly controls the compensation voltage to ensure stable output voltage and the output voltage accuracy can reach ≤±3%.
Dynamic Voltage Scaling UPQC
Solving high and low voltage issues
The UPQC device can effectively deal with high and low voltage problems in Taiwan. It can play an important role in the common line voltage fluctuation scenarios in rural power grids to avoid damage to electrical equipment caused by excessively high or low voltages.
Automatically stabilize output voltage
The device has a fully automated control function that detects grid voltage data in real time. After comparing it with the set output voltage, it flexibly controls the compensation voltage to ensure stable output voltage and the output voltage accuracy can reach ≤±3%.
Product Composition
How it works:
The UPQC is connected in series between the distribution transformer and the JP cabinet through the coupling transformer system side. It is fully automated and controlled. It detects the grid voltage data in real time and compares it with the set output voltage. The voltage that needs to be compensated is flexibly controlled through the converter part, and the output voltage is flexibly set. The inverter output voltage is coupled to the system through the coupling transformer, that is, only the difference part needs to be compensated to achieve the minimum compensation power.
Product Features
The system has high efficiency and fast response: it can continuously compensate for three-phase voltage, the response time is ≤5ms, and the overall efficiency reaches 98%.
High reliability: multi-level protection, simple circuit, high reliability, and low maintenance requirements; product switching frequency >100kHz, small output ripple current, better management effect, lower loss, and longer product life.
Modular design: Modular design makes maintenance easy, effectively reducing the workload of operation and maintenance personnel and reducing operation and maintenance costs.
Special process treatment: The module adopts advanced potting technology inside, with high protection level; more suitable for harsh environments.
Independent design: Use outdoor independent installation to facilitate on-site construction.
Multifunctional design: It can reduce the operation and maintenance workload (no need to adjust the transformer), stepless voltage regulation, reactive power compensation, optional harmonic control, and optional three-phase unbalance.
Application Scope
Seasonal load variation distribution area
In power distribution areas with obvious seasonal load changes, such as tourist attractions and agricultural production areas, the load peaks and valleys vary greatly, resulting in severe voltage fluctuations. UPQC can detect and adjust voltage in real time to ensure stable power supply.
Small hydropower access to distribution area
The connection of small hydropower will cause the grid voltage to fluctuate due to the instability of hydropower output. UPQC can effectively deal with this kind of fluctuation, ensure voltage quality and improve power supply reliability.
Long distance power supply and distribution area
Long-distance power supply lines have large resistance and high voltage loss, and the terminal voltage is prone to deviation. UPQC can perform stepless voltage adjustment, compensate for voltage differences, and ensure that end-user voltage is qualified.
Photovoltaic new energy access to power distribution area
Photovoltaic new energy power generation is affected by factors such as light, and the power output is unstable, which will cause voltage fluctuations. UPQC can flexibly control the compensation voltage and stabilize the voltage in the station area.
Data Sheet
| Electrical Parameters | |
| Wiring method | Three-phase four-wire |
| Input voltage | AC240~460V |
| Operating frequency | 50Hz±5% |
| Product specifications | 100kVA, 160kVA, 200kVA, 320kVA, 400kVA |
| Noise | ＜65dB |
| Technical Features | |
| Switching devices | IGBT |
| Heat dissipation methods | Intelligent air cooling |
| Heat dissipation control | Adaptive fan speed adjustment |
| Protection functions | Fault bypass, overcurrent, overheat, and overvoltage protection |
| Product Performance | |
| Voltage resolution accuracy | ≤±1% |
| Overall efficiency | ＞98.5% |
| Full response time | ＜5ms |
| Output voltage adjustment range | 100kVA: ±20%, 160kVA: ±20%, 200kVA: ±15%, 320kVA: ±10%, 400kVA: ±8%; Other pressure regulation ranges can be customized. |
| Display Interface | |
| Display screen | APP/Remote Control |
| Language | Chinese, English, customizable language |
| Battery display | Parameter control, system time log, voltage event log, event recording and data recording |
| Communication interface and protocol type | RS485, Modbus protocol; 4G/WiFi |
| Environmental Conditions | |
| Operating temperature | -25℃~+45℃ |
| Relative humidity | ≤95%, no condensation |
| Altitude | ＜2000m |
| Others | |
| Protection level | IP44, other ratings can be customized. |
| Installation method | Outdoor single pole/ground pole/H-pole |
Q&A
What are the advantages of UPQC?
1. Advantages of silicon carbide materials
Silicon carbide has characteristics such as high breakdown electric field and high electron mobility. UPQC using silicon carbide design can significantly improve system efficiency and reduce energy loss.
2. The significance of the first application
As the first product to adopt silicon carbide design solutions, UPQC has achieved technological leadership, set a new benchmark for industry development, and promoted the development of power quality conditioning equipment towards higher performance.
3.Performance improvement reflected
After using silicon carbide design, UPQC has a faster response speed, can continuously compensate for three-phase voltage, has a response time of ≤5ms, and can respond to problems such as voltage fluctuations in a more timely manner.
What are the UPQC installation solutions?
Structural features: Installed at the lower port of the transformer in the Taiwan area. Simple structure and convenient installation.
Application scenario: When there are two or more power quality problems at the transformer outlet of a low-voltage Taiwan area, power management is carried out in the entire Taiwan area.
Structural features: connected in series between distribution network branch lines and loads
Application scenario: When the low-voltage branch power supply radius is long and the branch line has two or more power quality problems, the downstream transmission line must be treated.
